Product Description
With the assistance of a dedicated and dexterous team of professionals, we have been able to manufacture, export and supply premium quality Cono Weeder Components to the customers. Widely used by the farmers to get rid of weeds and other foreign plants from the cultivated field, these cono weeder are highly appreciated for their flawless mechanism and fine finish. We use the best grade material for manufacturing these cono weeder components as per the industry laid quality standards. Available in various specifications, our clients can avail these Cono Weeder Components at highly competitive price.
Features:
-
Abrasion resistance
-
Sturdy design
-
Accurate dimensions
Technical specification
|
Particulars
|
Specification
|
|
Function
|

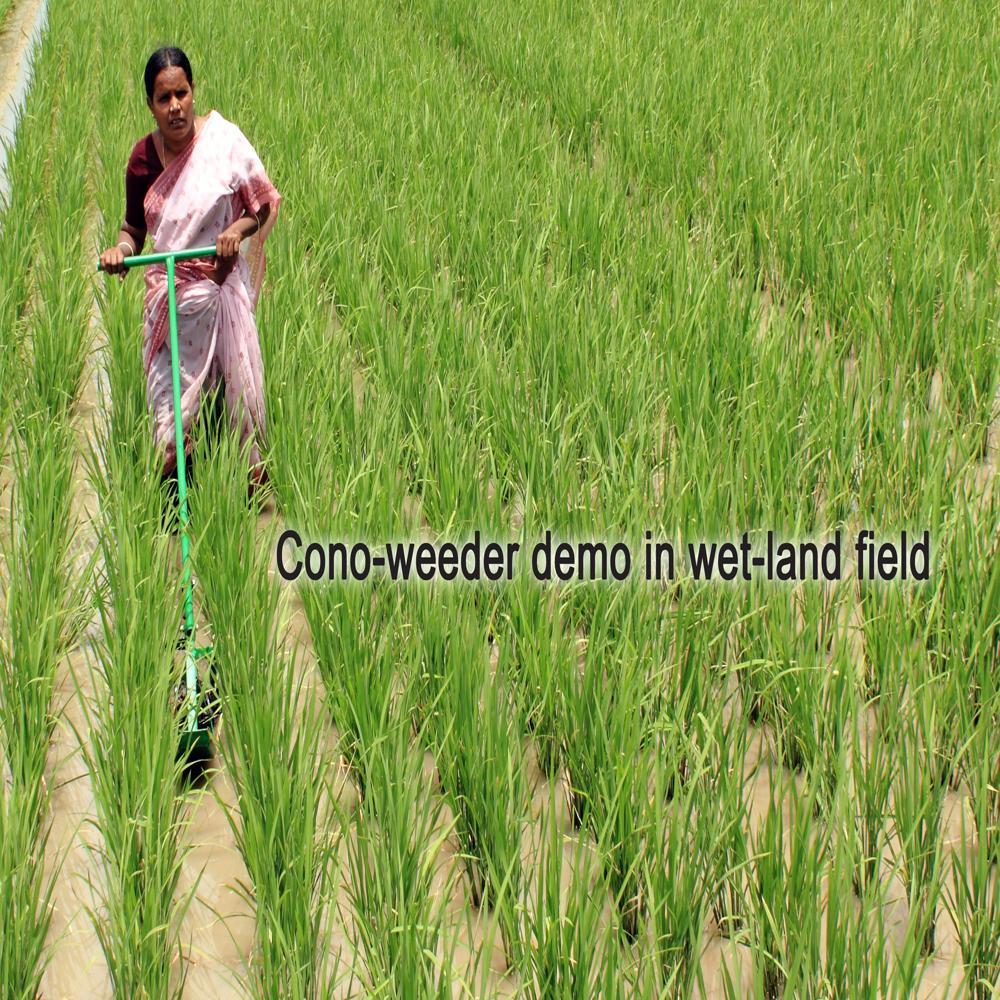

For weeding in between rows of line sowing paddy crop
|
|
Power
|
Manually operated
|
|
Number of operators
|
One person
|
|
Type of operation
|
Push Pull Operation
|
|
Operating Condition
|
Water must be more in the field at the time of weeding
|
|
Number of rows
|
Single Row
|
|
Weight
|
6 Kgs.
|
|
Width of operation
|
140 - 160 mm
|
|
Field Coverage
|
0.10 - 0.12 hectare / day of 8 hours of operation
|
|

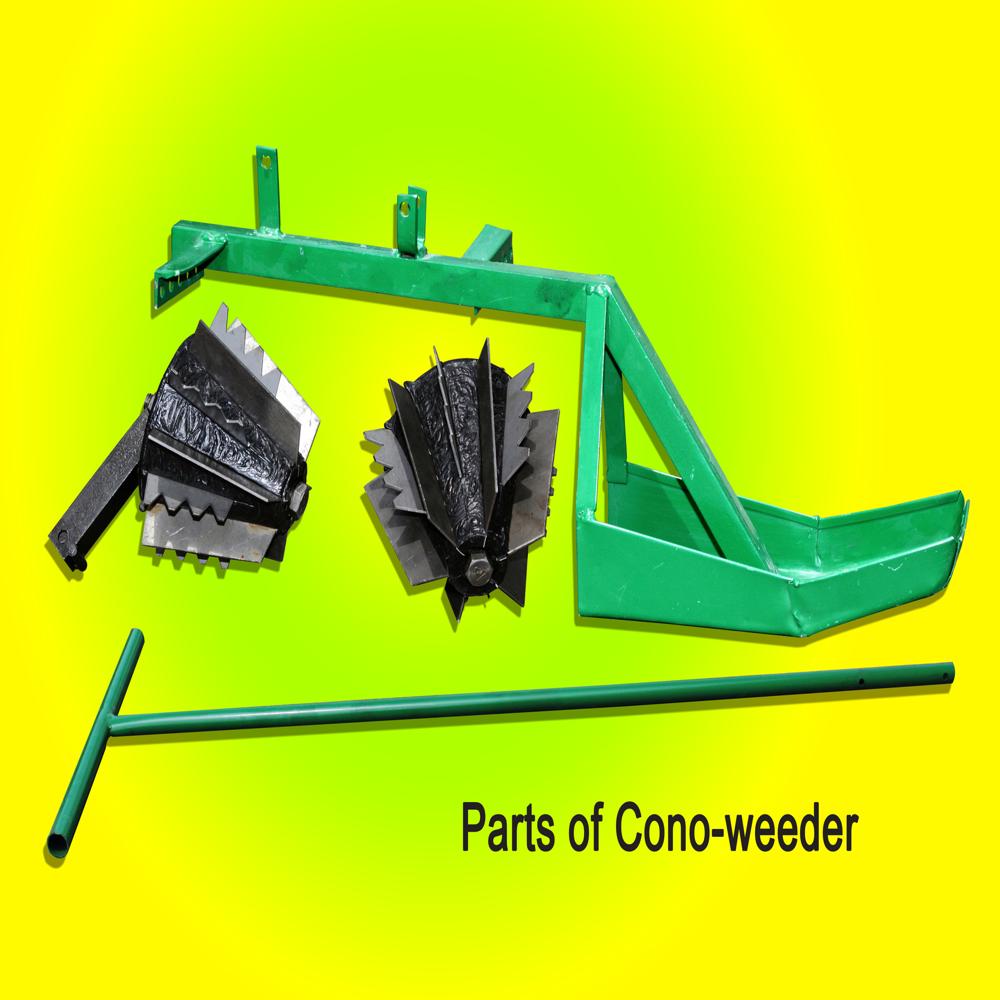

Number of cones (rotors)
|
2 Nos.
Cones are plastic moulded with MS blades
|
|
Blades
|
2 mm thickness
Each cone has the following blades
i) 6 numbers of plain blades &
ii) 6 numbers of serrated blades
|
|
Cone Holder
|
2 Nos.
25 mm dia 16 SWG Pipe with 1/2 inch nut welded at the bottom
30 mm dia 16 SWG Pipe with 5/16 nut welded on the top
|
|
Float Assembly
|
1 mm thickness
Size 320 x 120 x 65 mm
Float angle 21 degrees.
MS Pipes are of 25 mm dia 16 SWG
|
|
Handle
|
Main Pipe
20 mm dia 18 SWG
Length 1200 mm
Cross Bar
25 mm dia 18 SWG
Length 430 mm
|
|
General Information
|

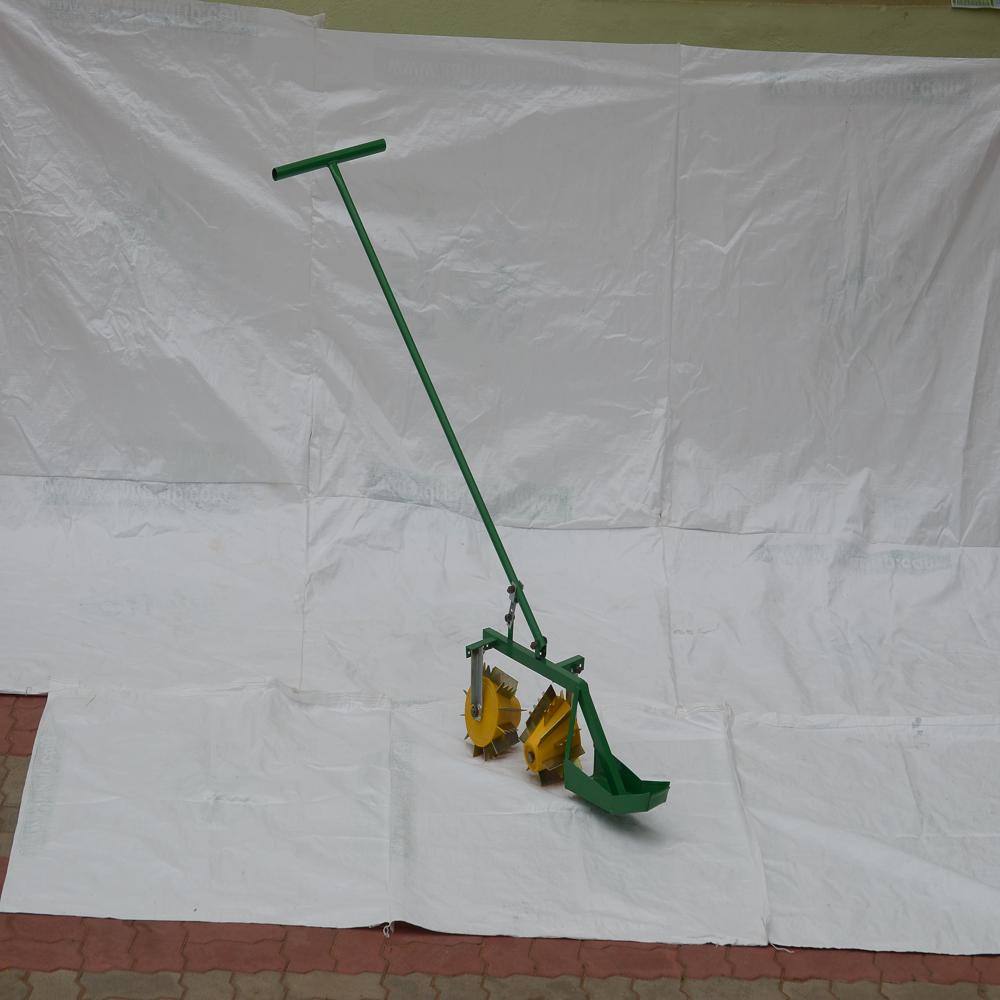

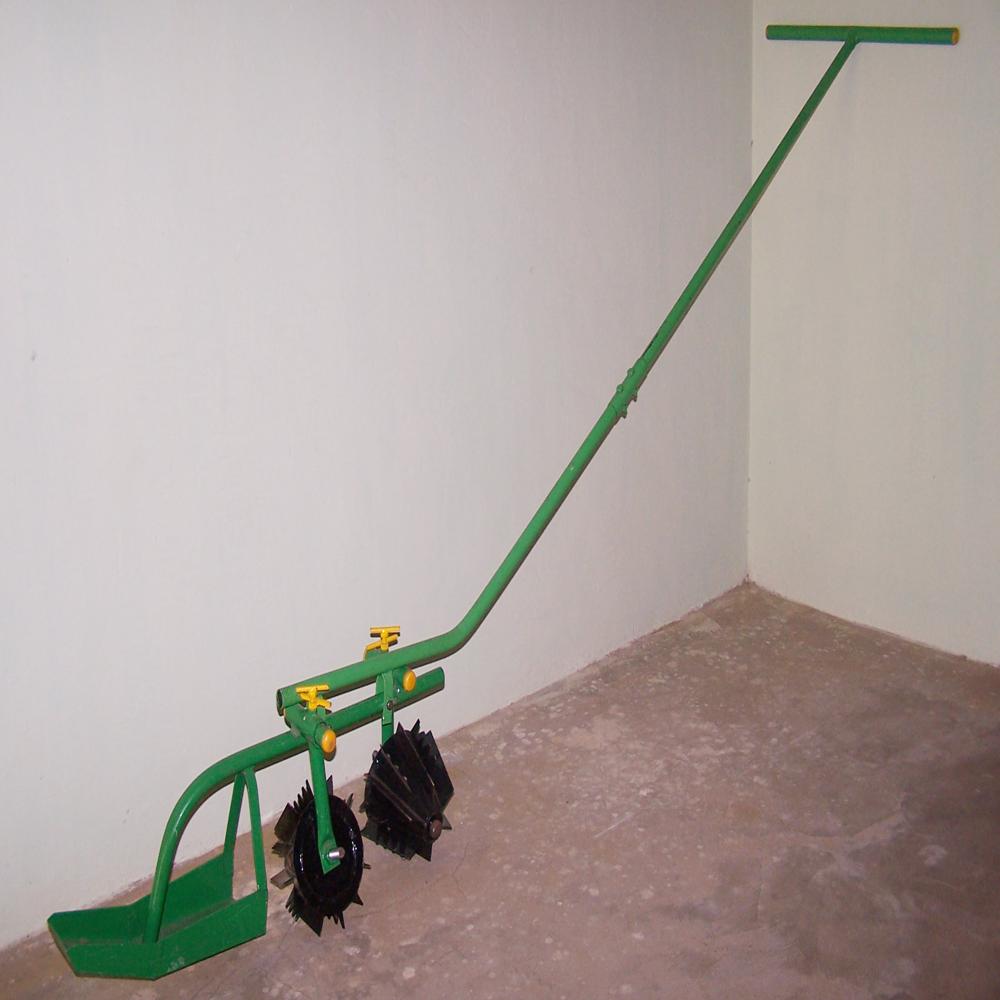

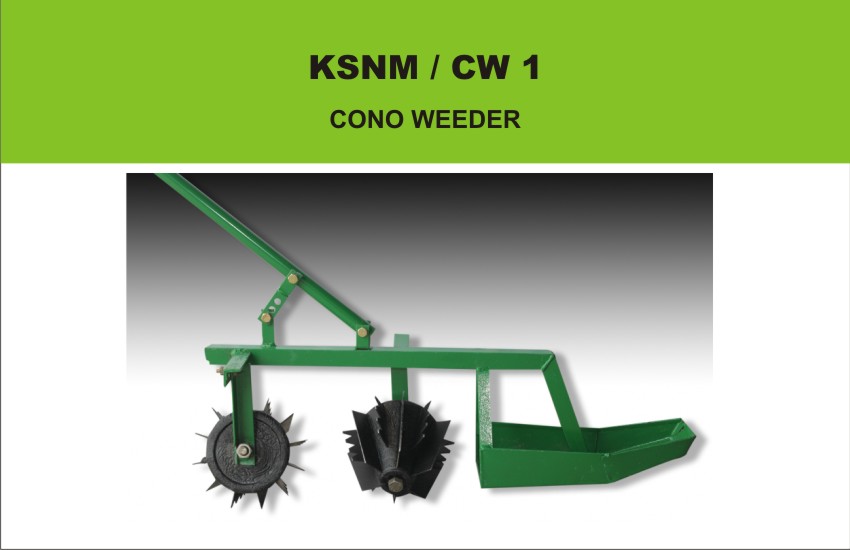

The cono weeder has two conical rotors mounted in tandem with opposite orientation. Smooth and serrated blades are mounted alternately on the rotor to uproot and burry weeds when the rotors create a back and forth movement in the top 3 cm of soil.
|
